Author Topic: A few pics of my Finished B4  (Read 5621 times)

Offline THI

  • Board Regular!
  • **
  • Posts: 18
Re: A few pics of my Finished B4
« Reply #15 on: July 23, 2014, 09:54:16 PM »

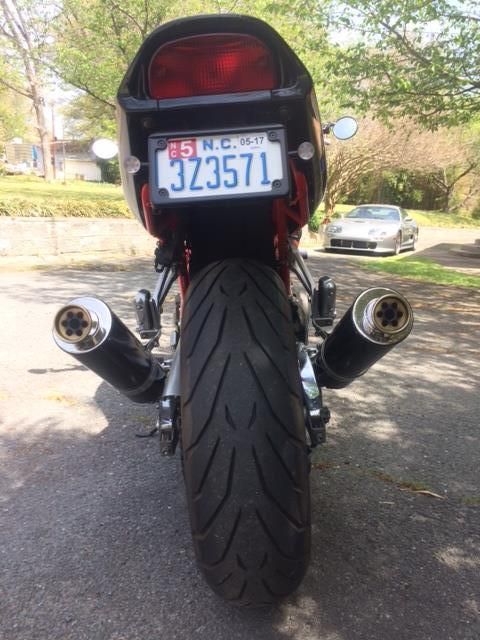

Changed it up one last time.  Ditched the GSXR cans for two Holeshots with DB killers.  The look and sound is perfect now.

« Last Edit: April 10, 2017, 03:10:54 PM by THI »

Offline greg737

  • Board Homesteader!
  • ***
  • Posts: 304
Re: A few pics of my Finished B4
« Reply #16 on: July 23, 2014, 10:12:44 PM »
Suddenly, without warning or comment, the bike shows up with a solo cowl instead of a rear seat.

Where did that come from?  I sure would like one.  Planning to make one from scratch in the near future, but finding an original would be nice.

At the very least I'd like to see a few pictures of the solo cowl from various angles to include how it attaches to the bike.

Offline THI

  • Board Regular!
  • **
  • Posts: 18
Re: A few pics of my Finished B4
« Reply #17 on: July 23, 2014, 10:21:27 PM »
That solo cowl is my pride and joy.  Bought it several years back & been saving it to put the finishing touch on the bike.  It attaches in the exact fashion as the stock seat.  I'll take more pics of it later on.

Offline greg737

  • Board Homesteader!
  • ***
  • Posts: 304
Re: A few pics of my Finished B4
« Reply #18 on: July 23, 2014, 10:28:42 PM »
It certainly makes a statement about the bike's purpose.  Looks so good.

I would appreciate some good pictures of it so I can attempt to accurately reproduce the contours.

(My fuel injection project Bandit 400 has the battery relocated to the tail along with the fuse box, the Microsquirt fuel injection ECU, several power relays and a couple of other items.  So I've got to build a solo cowl to cover all of this.)

Offline LowRyter

  • Site Supporters
  • Board Homesteader!
  • ***
  • Posts: 578
Re: A few pics of my Finished B4
« Reply #19 on: July 31, 2014, 12:47:29 AM »
she's a beaut

 :thumb:
John L

1998 Red Suzuki GSF-1200S
1998 Red & Cream Moto Guzzi V11 EV
2001 Greenie Moto Guzzi V11 Sport

Offline Unique

  • Board Homesteader!
  • ***
  • Posts: 132
    • unique/bandit400blog
Re: A few pics of my Finished B4
« Reply #20 on: July 31, 2014, 07:40:26 AM »
Hi THI

Yes that was suddenly!, the solo cowl (Hump) does finish things off and certainly makes a statement.

I had to make one up as I couldn't find one in the UK.

greg737 and ThI
Here's mine.. (the post here' wont show the full link so google as below  :duh:)
If the link here? is missing! it wasn't showing in the Preview, google "unique/dek" look for "The Hump" or see member list, pg78! click on website.
« Last Edit: July 31, 2014, 06:47:18 PM by Unique »

Offline andrewsw

  • Board Homesteader!
  • ***
  • Posts: 598
Re: A few pics of my Finished B4
« Reply #21 on: July 31, 2014, 01:23:21 PM »
Looks great!

I'm in the process of building a one-off "hump" myself. I've free-formed a plug out of florists foam and applied a good layer of bondo to give a nice finished surface. I'm almost ready to glass up a mold from the plug to build the final one from. I'll post up some pics when it's more done.

A

Offline THI

  • Board Regular!
  • **
  • Posts: 18
Re: A few pics of my Finished B4
« Reply #22 on: August 17, 2014, 07:48:10 PM »
I have always wanted a bellypan for my Bandit but all that I see seems to be too short & protrude forward too much for my liking.  Since I did dual exhaust conversion, I have more room underneath from the removal of the center stand.  With an extra bellypan from a Street Triple laying around, I decided to line it up and pleasantly found out that it should work.  So after a few trip to Lowes for some custom made brackets, I had it installed and very happy with the result.  I also installed a headlight cowl off a bandit 650.  Now I am in search of the perfect hugger...





Offline TJS

  • Board Homesteader!
  • ***
  • Posts: 397
Re: A few pics of my Finished B4
« Reply #23 on: August 20, 2014, 12:16:51 AM »
Rear hugger from the rf 900 and oil cooled bandit 1200 should work.

Offline Squishy

  • Board Homesteader!
  • ***
  • Posts: 408
Re: A few pics of my Finished B4
« Reply #24 on: August 22, 2014, 12:23:50 PM »

Offline THI

  • Board Regular!
  • **
  • Posts: 18
Re: A few pics of my Finished B4
« Reply #25 on: June 22, 2016, 12:17:03 AM »
Just got a new friend for my Bandit.  A '99 Hornet 250.  May be the only plated one here in the USA.










Offline TJS

  • Board Homesteader!
  • ***
  • Posts: 397
Re: A few pics of my Finished B4
« Reply #26 on: June 22, 2016, 12:19:37 AM »
Love the colors!

Offline ventYl

  • Board Homesteader!
  • ***
  • Posts: 241
Re: A few pics of my Finished B4
« Reply #27 on: June 22, 2016, 04:04:29 PM »
I would like to see it side by side with Hornet 600 :)
Bandit 400 1991 - stock except of swap from GK75B to GK75A

Offline THI

  • Board Regular!
  • **
  • Posts: 18
Re: A few pics of my Finished B4
« Reply #28 on: June 24, 2016, 11:23:35 AM »
I would like to see it side by side with Hornet 600 :)

Honda actually put the 250cc motor into a Hornet 600 chassis.  Side by side, it will be almost indistinguishable...

Offline THI

  • Board Regular!
  • **
  • Posts: 18
Re: A few pics of my Finished B4
« Reply #29 on: April 10, 2017, 03:16:22 PM »

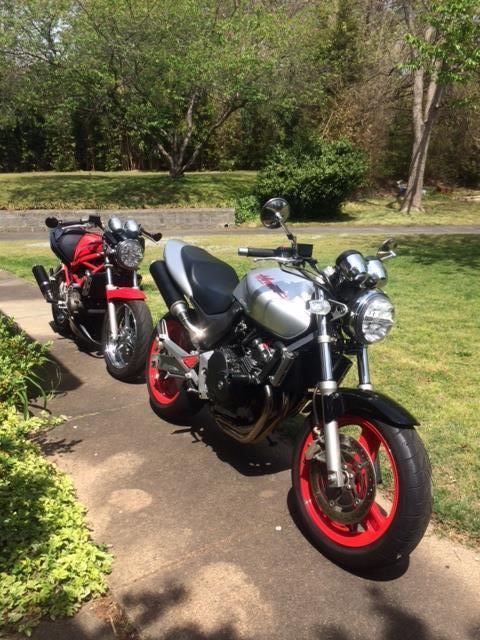

Side by side......
